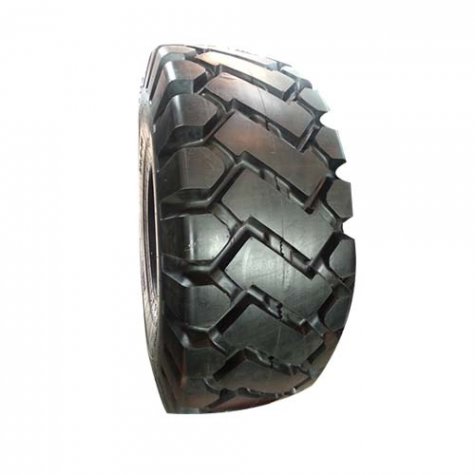

Applies to heavy dump trucks, scrapers and loaders under the condition of a varety of assignments, with wide generality, special tread compounds design and powerful body structre design, make it has excellent heat resistant abrasion resistance and good drawing performance, it's durable tires on mine construction.
| Size | P.R. | Overall Diameter (mm) | Section Width (mm) | Rim | Max Load (kgs) | Inflation Pressure (Kpa) | Tread Depth (mm) | ||
| 10 km/h | 50 km/h | 10 km/h | 50 km/h | ||||||
| 20.5/70-16 | 14 | 910 | 350 | 10.00 | / | 1600 | / | 390 | 16 |
| 16/70-16 | 14 | 910 | 350 | 10.00 | / | 1600 | / | 390 | 16 |
| 16/70-20 | 16 | 1075 | 410 | 13.00 | 5150 | 2900 | 450 | 350 | 26 |
| 16/70-24 | 16 | 1175 | 410 | 13.00 | 5600 | 3350 | 450 | 350 | 26 |
| 17.5-25 | 20 | 1350 | 445 | 14.00/1.5 | 8250 | 5000 | 575 | 400 | 26 |
| 20.5-25 | 24 | 1490 | 520 | 17.00/2.0 | 10300 | 6700 | 525 | 400 | 29 |
| 23.5-25 | 24 | 1615 | 595 | 19.50/2.5 | 12500 | 8000 | 475 | 350 | 32 |
| 26.5-25 | 32 | 1750 | 675 | 22.00/3.0 | 17000 | 11200 | 550 | 425 | 35 |
