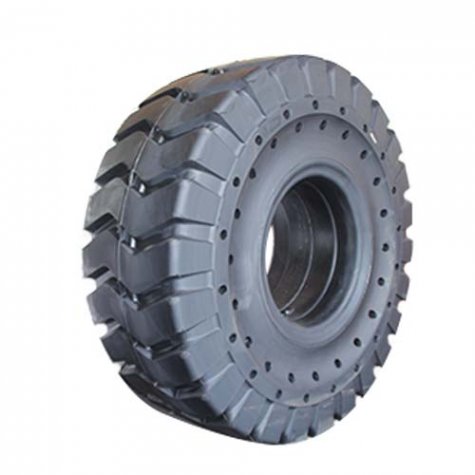

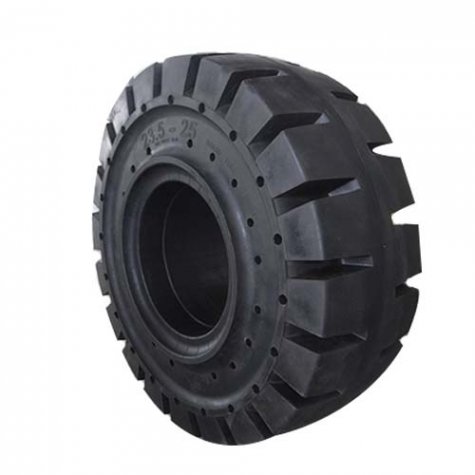

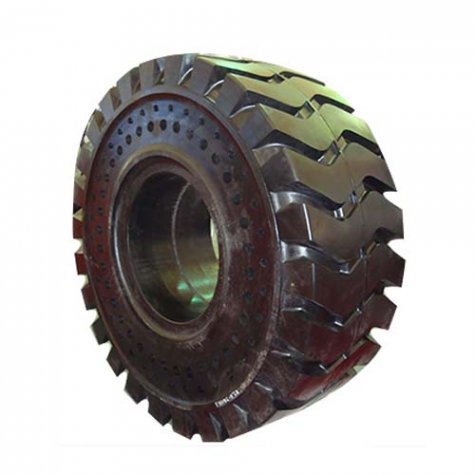

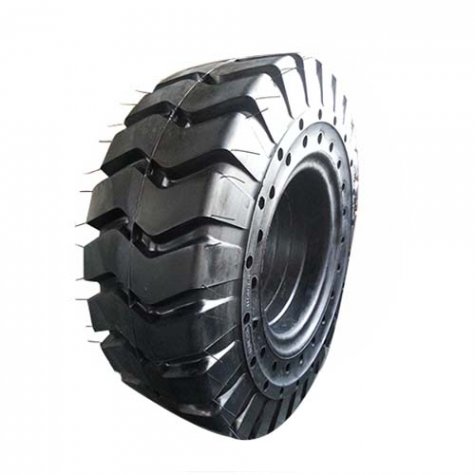

Adopt meridian tire structure, special formula design. High load, high life, piercing resistance, maintenance free, better than sponge foam solid tire. The utility model is mainly suitable for large engineering machines used in ports, containers, docks, steel works, mines, waste recovery operations, etc..
| Solid OTR Tire | ||||||||||
| SIZE | RIM | Overall Diameter(mm) | Section Width (mm) | 10km/h | 16km/h | 26km/h | weight | |||
| Load | Rotation | Load | Rotation | Load | Rotation | Kg | ||||
| 16.00-25 | 11.25/2.0 | 1446 | 390 | 16860 | 13490 | 15170 | 11400 | 13480 | 10130 | 600 |
| 17.5-25 | 14.00/1.5 | 1310 | 396 | 13000 | 10500 | 11000 | 8000 | 8500 | 7000 | 443.5 |
| 18.00-25 | 13.00 | 1620 | 480 | 21000 | 16500 | 19500 | 13600 | 13500 | 13000 | 883 |
| 20.5-25 | 17.00 | 1350 | 485 | 15000 | 11000 | 13000 | 8560 | 10000 | 7500 | 743 |
| 23.5-25 | 19.50/2.5 | 1540 | 527 | 19500 | 14500 | 17000 | 13000 | 13500 | 11500 | 915 |
| 26.5-25 | 22.00 | 1736 | 650 | 39300 | 31400 | 37400 | 28100 | 35400 | 26600 | 1406 |
| 29.5-25 | 22.00 | 1950 | 740 | 59100 | 48300 | 57800 | 43200 | 57300 | 41700 | 1750 |
